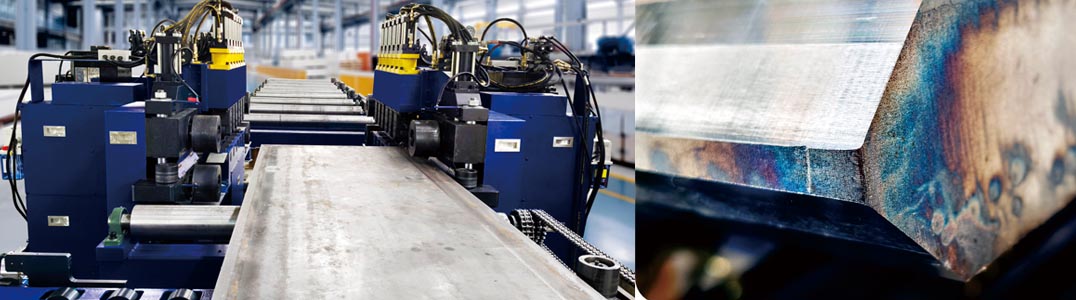

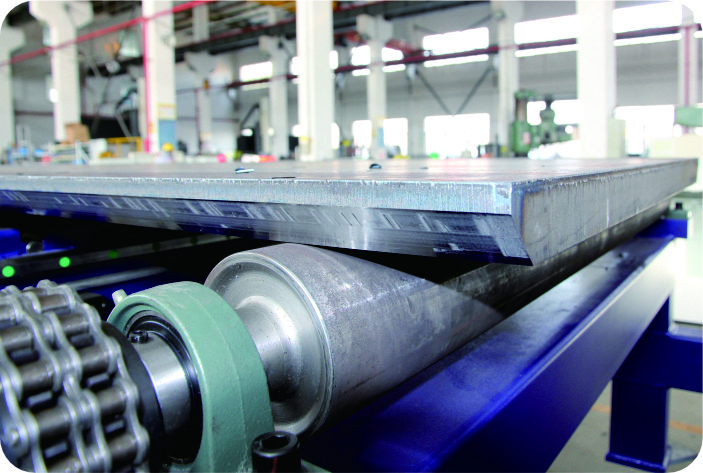

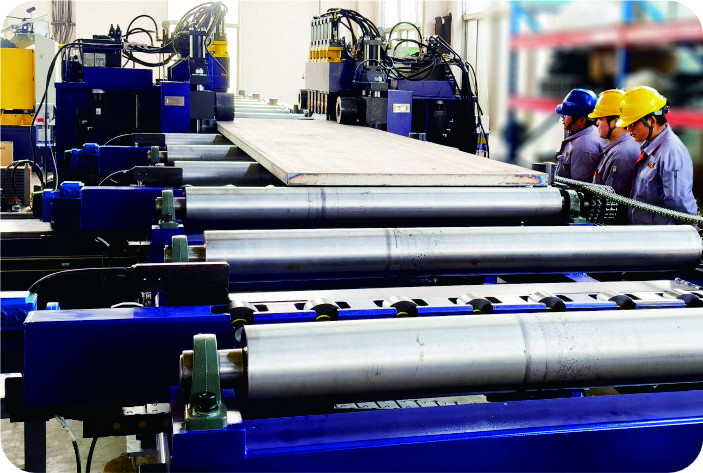

This machine adopts a pass-through processing design for workpiece beveling and is fixed to the ground for stable machining. Cutting spindles are arranged on both sides across the workpiece width, enabling simultaneous double-side beveling in a single feed stroke. Forming cutter heads are used for cutting, with customizable bevel profiles available upon customer request. It is mainly applied for double-side bevel machining of long structural steel components including H-beams, box girders and U-rib plates, doubling overall production efficiency.
Power Supply: AC380V, 50Hz
Total Power: Approx. 7000W (excluding feeding rack)
Minimum Workpiece Length: ≥3000mm
Machinable Plate Thickness: 6~40mm
Machinable Plate Width: 300~1200mm
Bevel Angles: 0°, 25°, 30°, 45° (customizable)
Bevel Profiles: Lower V/Y, J/U, 0° flat cut
Clamping Mode: Hydraulic Clamping
PLC visual bevel operation interface
Dual-language system support
Real-time monitoring of input and output signals

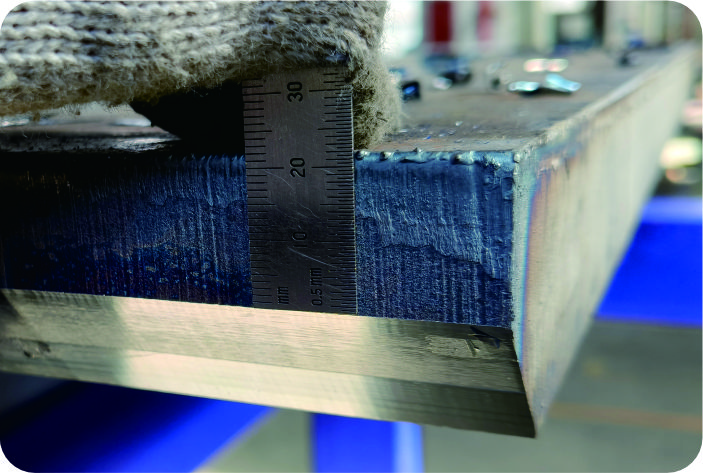

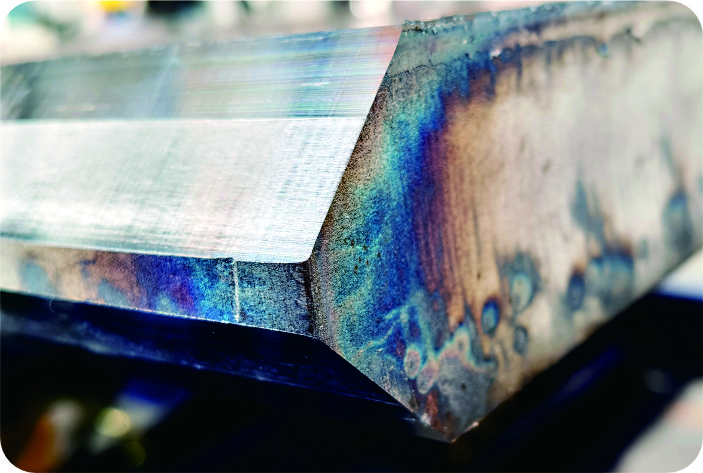

Cold cutting process, no oxidation or deformation on bevel surfaces
Bevel surface roughness: Ra3.2~6.3
Bevel angle accuracy: ±0.5°
One-click bevel operation after parameter input
Equipped with automatic lubrication and chip removal systems
User-friendly operation, operable by general workers
24V low-voltage control cabinet for enhanced operational safety
